Measuring a bolt correctly is essential for ensuring it fits your project. Using the right tools and understanding the key measurements will help you get the precise size needed. Here’s a simple guide on how to measure a bolt using basic tools.
Tools Needed for Measurement
For the most accurate measurements of a bolt, it’s best to use measuring tools are:
- Caliper: This tool is great for measuring the diameter and thickness of bolts.
- Thread Gauge: Used to measure the thread pitch, which is the distance between threads.
- Ruler or Tape Measure: This is used to measure the length of the bolt.
- Bolt Gauge: A special tool to check the size of bolts.
Step To Measure Bolt Size

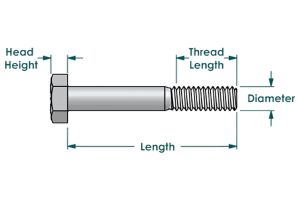

Step 1 Measure the shank’s diameter
The diameter of a bolt is the distance across the widest part of the threads. This is also known as the “major diameter.” To measure the diameter, use a calliper and measure the bolt’s outer thread. Alternatively, you can measure the diameter of the smooth part of the bolt, called the “shank.” This is the part that doesn’t have any threads. The diameter is usually indicated on the bolt, but it’s always a good idea to measure it yourself to ensure accuracy.
Step 2 Determine the Thread Pitch
Thread pitch is the distance between two consecutive threads. For example, if the pitch is 1.5mm, the distance between threads is 1.5 millimetres. To measure the pitch, use a thread gauge specifically designed to measure thread spacing accurately. Some bolts may have a fine or coarse thread, so measuring the pitch carefully is important.
Step 3 Identify the Bolt Length
The length of the bolt is the distance from the base of the bolt head (where it meets the shank) to the bolt’s tip. For bolts with flat heads, the length includes the height of the head. If you’re measuring a dome-head bolt, the length should be measured from the highest point of the curved head. You can use a ruler or tape measure to get the correct length.
Step 4 Measure the Length of the Threaded Portion
The threaded portion of the bolt is the part that has threads. This is useful when determining if you need a fully threaded-bolt or a partial-thread bolt. Measure only the length of the threaded part and exclude the smooth shank or head. A bolt’s threaded length is crucial for ensuring it will screw into your materials correctly.
Step 5 Look at the Shape of the Bolt’s Head.
The bolt head comes in different shapes, such as flat, dome, or hexagonal. The shape of the head may affect how it fits into a wrench or tool, so it’s essential to identify this before use. The head’s size and shape are important when choosing the right bolt for specific applications.
How do you measure an M8 bolt size?
An M8 bolt has a diameter of 8 millimetres. To measure the size, use a calliper to measure the outer diameter of the threads. The length of the bolt will be indicated separately.
How do we measure thread size?
The thread size is determined by the bolt’s diameter and the pitch of the threads. To measure the thread size, use a thread gauge to check the pitch and a calliper to measure the diameter.
How to measure bolt diameter?
The diameter is measured across the outer threads of the bolt using a calliper. Ensure to measure the widest part of the bolt, including the threads.
How do you measure bolt length?
The length of the bolt is measured from the base of the head to the tip. For flat-head bolts, the length includes the height of the head. For dome-head bolts, measure from the highest point of the head to the tip.
How do we measure threads?
Threads can be measured by counting the number of threads per inch or using a thread gauge to measure the pitch, which is the distance between each thread.
How is thread pitch measured?
Thread pitch is measured in millimetres or inches, depending on the system you are using. Use a thread gauge to measure the distance between the threads and determine the pitch accurately.
By using the correct tools and understanding these key measurements, you can ensure that the bolts you choose will fit your project.
