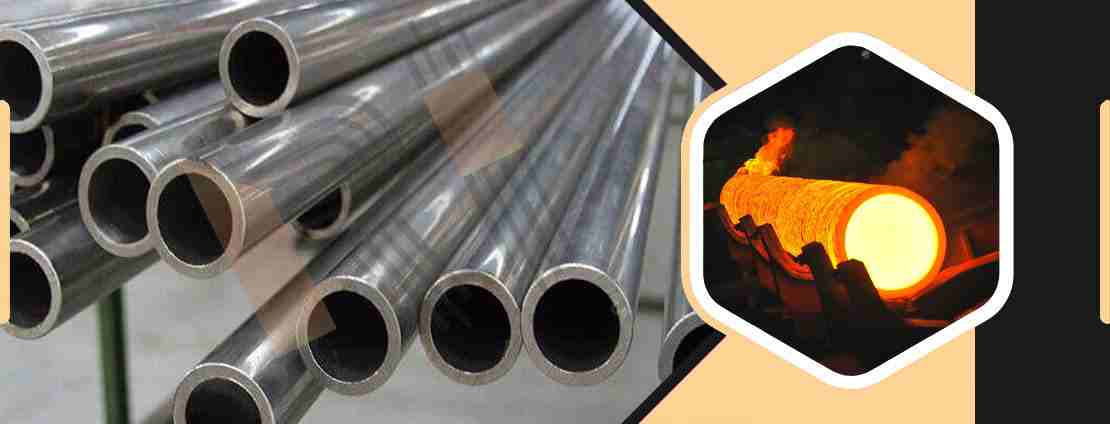

ASTM B358 Alloy 800 Pipe
Inconel ASTM B358 Seamless Pipe
-
UNS N08800 Seamless Pipe
Inconel N08800 Pipes
-
1.4876 Tubing
WNR. 1.4876 Tubes
Incoloy 800 Tubes, Incoloy 800H Pipes Supplier, Incoloy 800HT Tube, ASTM B358 Incoloy 800 Welded Pipe, Alloy 800 Tube Supplier in Mumbai.
Incoloy 800, 800H, and 800HT pipes are known for their excellent mechanical properties like high strength, good oxidation resistance, and higher creep rupture strength. These pipes are made up of Nickel-Iron-Chromium alloy having superior corrosion resistance in both reducing and oxidizing environments. Incoloy 800 series pipes have good hot workability with some cold workability as well.
Table of Content
They offer outstanding performance at elevated temperatures, making them suitable for use in extreme temperature applications such as heat exchangers, pressure vessels, boilers, and petrochemical processing equipment. With superb tensile strength and good creep rupture properties, these pipes can easily resist chloride stress cracking corrosion that occurs in many other stainless steel grades under highly corrosive conditions.
800 Incoloy werkstoff nr. 1.4876 Tubes, Incoloy N08800 Seamless Pipe Manufacturer, Alloy 800 Seamless Pipe Manufacturer, Incoloy 800HT Square Tubes, Incoloy 800H Rectangular Pipe Manufacturer, Incoloy N08810 Tubes Exporter in India, 800H Incoloy 1.4958 Welded Tube, Inconel 800 Pipe Manufacturer in India.
Incoloy 800 Tubes have excellent resistance to corrosion in both acidic and alkaline environments. They also offer exceptional resistance to stress corrosion cracking, pitting, and crevice corrosion. The addition of aluminum and titanium in the alloy improves its oxidation resistance at high temperatures making it a perfect choice for applications such as heat exchangers, furnace components, steam super-heater tubes, and automotive exhaust systems.
The combination of high strength, temperature stability, weldability, and formability make Incoloy 800H pipes an ideal choice for many industrial applications such as petrochemical processing equipment, off-shore oil rigs, and paper mill equipment. These pipes are available in various sizes and grades to meet your requirements. To ensure optimum quality products, Incoloy 800HT Tubes are subjected to rigorous quality control tests.
If you need high-quality, reliable, and durable Incoloy 800, 800H, and 800HT Pipes and Tubes for your industrial applications, contact us today! We have a wide range of sizes and grades to meet all your needs. Our experienced professionals will help you find the right product that fits your requirements perfectly.
ASME SB407 Incoloy 800HT Pipes, ASTM B358 Incoloy 800HT Pipes, 800H Incoloy Werkstoff Nr 1.4958 Tubes Supplier, Incoloy 800HT Hollow Pipe, Stockist of 800HT Incoloy UNS N08811 Tubes, Incoloy Werkstoff Nr 1.4859 Pipes, Inconel® Alloy 800 Welded Pipes In India.
Inconel 800 Pipe Specifications
| Grades | Incoloy 800 – UNS N08800, Incoloy 800H / HT – UNS N08810/N08811 |
| Standards | ASTM, ASME and API |
| Specifications | ASTM B 407, 514, 515/ ASME SB 407, 514, 515 |
| Size | 15"NB TO 150"NB IN |
| Length | Within 13500mm |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Form | Round, Square, Rectangular, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| End | Plain End, Beveled End, Treaded |
Inconel 800H Pipe Equivalent Material
| Standard | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
| UNS | N08800 | N08810 | N08811 |
| WERKSTOFF NR. | 1.4876 | 1.4958 / 1.4876 | 1.4859 / 1.4876 |
| AFNOR | Z8NC32-21 | Z8NC33-21 | - |
| JIS | NCF 800 | NCF 800H | NCF 800HT |
| GOST | ЭИ670 | ЭИ670 | ЭИ670 |
| OR | XH32T | XH32T | XH32T |
| EN | X10NiCrAlTi32-20 | X5NiCrAlTi31-20 | X8NiCrAlTi32-21 |
| BS | NA 15 | NA 15(H) | NA 15(HT) |
Common Types of Inconel Alloy 800HT Pipe & Tube
Inconel 800 Seamless Pipe
Alloy 800H Welded Pipes
Incoloy Alloy 800HT ERW Pipe
Inconel 800 EFW Pipe
Inconel 800H Seamless Tubing
Inconel 800HT Welded Tube
Inconel 800 ERW Tubing
Inconel 800H Polished Pipe
Inconel Alloy 800HT EP Pipe
Inconel 800 Hollow Pipe
Inconel 800H Tubing
Inconel 800HT Square Pipe
Inconel 800 Pipe & Tube Technical Data Sheet
Inconel 800 Pipe Size Chart in MM
Inconel Alloy 800H Tube Sizes
Jindal Alloy 800HT Weight Chart
Inconel 800 Pipe Nominal Size and Schedule
Alloy 800H Pipe Price List
| Price List of Inconel 800 Pipe | Alloy 800H Pipe Price in India (INR) | 800HT Inconel Pipe Price in USD | Inconel Alloy 800 Pipe Price in UAE (Dirham) |
| Inconel 800 Pipe Price | ₹ 537 | $ 6.35 USD | 25.72 AED |
| 2 inch Inconel Alloy 800H Pipe Price | ₹ 177 | $ 2.23 USD | 8.47 AED |
| Alloy 800HT Seamless Tube Price Per Kg | ₹ 179 | $ 1.72 USD | 5.77 AED |
| Inconel 800 Tube Price in India | ₹ 175 | $ 2.57 USD | 8.35 AED |
| Inconel 800H Square Pipe Price | ₹ 147 | $ 2.35 USD | 9.36 AED |
| 1 inch Alloy 800HT Pipe Price | ₹ 457 | $ 5.39 USD | 20.53 AED |
| Jindal Steel Pipe 800 Price Per Kg | ₹ 973 | $ 10.57 USD | 40.75 AED |
| Price of Inconel 800H EFW Pipe | ₹ 177 | $ 2.39 USD | 7.75 AED |
| 800HT Alloy Heat Exchanger Tube Price List | ₹ 379 | $ 4.35 USD | 16.33 AED |
Check Inconel 800 Tubing Sizes, Pressure Rating, Weight and Inconel Alloy 800H Pipe Price per Square Foot in Mumbai.
Inspection
Chemical Composition Inspection, Mechanical Properties Test(tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test, No-destructive Test, Hydrostatic Test.
Value Added Services
- Beveling
- Heat Treating & Annealing
- Honing & Turning
- Polishing
- UT Testing
Packing
Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.
Marking
Our products are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases.
Inconel 800 Pipe Chemical Composition
| Incoloy 800 | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si |
| 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .15-.60 | .15-.60 | .1 max | 1.5 max | .015 max | 1.0 max | |
| Incoloy 800H | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si |
| 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .15-.60 | .15-.60 | .05-.10 max | 1.5 max | .015 max | 1.0 max | |
| Incoloy 800HT | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si |
| 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .25-.60 | .85-1.20 | .06-.10 max | 1.5 max | .015 max | 1.0 max |
Inconel Alloy 800H Tube Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 800 | 7.94 g/cm3 | 1350-1400 ℃ | 500 | 205 | 30 - 35 % |
| Incoloy 800H | 7.94 g/cm3 | 1350-1400℃ | 500 | 200 | 30 - 35 % |
| Incoloy 800HT | 7.94 g/cm3 | 1350-1400℃ | 500 | 200 | 30 - 35 % |
Other Types of Inconel Alloy 800 Pipe & Tube
Inconel Pipes
- Large Diameter 800 Inconel Pipe
- Inconel 800H Pipe
- Inconel 800HT Square Pipes
- 16 Gauge Inconel 800 Pipe
- UNS N08800 Pipe
- Inconel 800H Electropolished Pipe
- Alloy 800HT Thick Wall Pipe Dealers
- N08810 Pipes
- Inconel 800 Rectangular Pipes
- Inconel 800H Pipe Manufacturer in India
- 1.4958 Seamless Pipes
- 800HT Inconel Seamless Pipe
- Inconel 800 Schedule 40 Pipe
- Inconel 1.4876 Pipe Price
- ASME SB358 Inconel 800H Pipes
- Inconel 1.4859 Pipe HSN Code
- Inconel N08811 Thin Wall Pipe Exporter
- 800 Inconel Pipe
- Inconel 800H Pipes Manufacturer in Mumbai
- Inconel Alloy 800H Welded Pipe
- Alloy 800HT Pipe Weight Calculator
- Inconel N08800 Pipe
- 800 Inconel ERW Pipe
- 800H Pipe Suppliers
- Inconel 800HT Welded Pipe
- Inconel Alloy 800 Pipe Supplier in Mumbai
- ASTM B358 Inconel 1.4876 Pipes
- 800 Inconel Pipe Suppliers in India
- Inconel 800HT EFW Pipes
Inconel Tubes
- Inconel 800 Mechanical Tubing
- Inconel 800H Tube Price
- Inconel 800HT Polished Tubing
- Inconel Alloy 1.4876 Tube Manufacturers in India
- Inconel N08810 Round Tubing
- Inconel 800 Square Tubing
- Inconel 800H Tubing
- Inconel 800HT Seamless Tubes
- Inconel 800 Tube
- Inconel Alloy 800H Tube Supplier in Mumbai
- UNS N08811 Tubes
- 800 Tubing
- Alloy 800H Tube Weight Calculator
- Alloy 800H Thin Wall Tube Stockist
- Inconel 800HT Thick Wall Tube
- Inconel 800 Tube Suppliers in India
- Inconel N08800 Welded Tube
- Inconel 1.4876 Heat Exchanger Tube
- Inconel 800H ERW Tubes
- 1.4876 Tubing
- Inconel 800 Oval Tubing Distributors
- Inconel 800H Square Tube
- Inconel 800HT Tube Manufacturer in India
- ASTM B358 Inconel Alloy 800 Welded Tubes
- Inconel 800H Capillary Tube
- Inconel 800HT Rectangular Tube
- ASME SB358 Inconel 800 Tubing
- Inconel 800H Hydraulic Tubing
- ASTM B358 Inconel 800HT Tubing
- Inconel Alloy 800 Tubes Manufacturer in Mumbai
Inconel 800H Pipe Manufacturing Process
Inconel 800 Pipe Processing
| Structural Cutting | Products cut include pipes, tube, tubing, Square pipes, Rectangular pipes, round pipes Thickness range is 1/16" to 28" diameter |
| Tubular Cutting | Products cut include Ornamental Tube, Tubing and Hollow Bar. Thickness range is 1/16" to 28" diameter |
| Production Cutting | Renox Impex provide production cutting for product diameters up to 4". We utilize Amada Production Equipment to achieve these precision cuts with tight tolerances. |
| Structural Polishing | Products polished included all tubular products, with OD & ID polishing available |
Inconel 800HT Pipe Industrial Application
Oil & Gas
Industry
Power Plant
Generation
Marine
Industry
Petrochemical
Industry
Chemical
Industry
Aerospace
Industry
Sugar
Industry
Contact Renox Impex today for a best offer & competitive quotation Of Inconel 800 Pipe.
