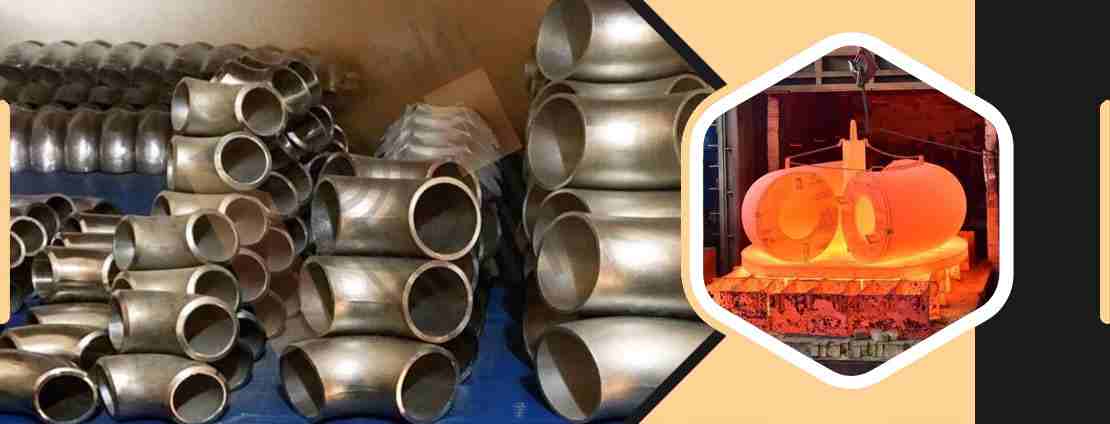

ASTM B363 TI 6AL 4V ELI Pipe Elbow
Ti-6Al-4V ELI Pipe Elbow
UNS R56401 Pipe Fittings
Titanium R56401 Buttweld Fittings
3.7164 Butt weld Fittings
WNR. 3.7164 Pipe Fittings
Titanium Grade 23 Pipe Fittings are distinguished by their impeccable design and strength. The material is characterized by superb corrosion resistance, high fatigue strength, notable weldability, and outstanding ductility. This grade of titanium pipe fittings finds use in a variety of industries such as chemical processing, oil & gas production, petrochemical refining projects, and aerospace engineering.
Table of Content
Due to its superior strength-to-weight ratio, Titanium Grade 23 Pipe Fittings can be produced in large sizes without any risk of structural failure or deformation. Furthermore, the material’s low thermal conductivity ensures that it can be safely used for temperature regulation purposes. Plus, along with excellent toughness and creep resistance properties at elevated temperatures, this type of titanium pipe fittings is also highly resistant to vibration and impact.
At Renox Impex, our Grade 23 Titanium Pipe Fittings are available in a variety of forms such as tees, crosses, reducers, stub ends, and. Thanks to the comprehensive selection we offer in all major standard sizes, you can find the perfect fitting for your exact requirements.
Specifications | ASTM B363 / ASME SB363 |
Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
Size |
Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
Type | Seamless / Welded / Fabricated |
Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Titanium Pipe Fitting |
Schedule | Sch 5 TO Sch XXS. |
Thickness | 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc. |
Connection | Welding |
Manufacturing process | Forge, Cast, Push, Press, etc. |
Key markets and industries |
|
Test Certificates |
EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | 90 Deg Elbows, 45 Deg Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
STANDARD | WERKSTOFF NR. | UNS |
TI 6AL 4V ELI | 3.7164 | R56401 |
Gr.23 Titanium Pipe Fittings Dimensions
Ti-6Al-4V ELI Pipe Fitting Tolerance
Titanium Alloy Gr 23 Buttweld Fittings Weight Chart
Price List of TI 6AL 4V ELI Pipe Fittings | Titanium Alloy Gr 23 Pipe Fittings Price in India (INR) | Ti Alloy 6Al-4V ELI Pipe Fittings Price in USD | Titanium Gr.23 Pipe Fittings Price in UAE (Dirham) |
TI 6AL 4V ELI Titanium Elbow Price List | ₹ 920 | $ 7.35 USD | 32.58 AED |
Ti Grade 23 Pipe Fittings Cost | ₹ 1600 | $ 18.82 USD | 53.11 AED |
Titanium 6Al-4V ELI Elbow Price | ₹ 2300 | $ 56.17 USD | 350.30 AED |
Titanium Grade 23 Weld Fittings Prices | ₹ 1650 | $ 23.78 USD | 70.30 AED |
Titanium 6Al-4V ELI Reducing Elbow Price | ₹ 590 | $ 4.82 USD | 34.20 AED |
Titanium Gr 23 Long Radius 90 Degree Elbow Price | ₹ 1240 | $ 15.06 USD | 75.96 AED |
Price of Schedule 10 Titanium Ti-6Al-4V ELI Pipe Fittings | ₹ 640 | $ 45.35 USD | 65.73 AED |
Price of Titanium Alloy Gr 23 Reducer | ₹ 1620 | $ 17.00 USD | 53.53 AED |
Titanium Alloy TI 6AL 4V ELI Seamless Fittings Price List | ₹ 2200 | $ 37.22 USD | 350.40 AED |
Check Gr.23 Titanium Butt weld Fittings Sizes, Pressure Rating, Weight and Titanium R56401 SMLS Fittings Price per KG in Mumbai.
Inspection
Chemical Composition Inspection, Mechanical Properties Test(tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test, No-destructive Test, Hydrostatic Test.
Value Added Services
Packing
Bare packing/bundle packing/crate packing/wooden protection at the both sides of pipe Fittings and suitably protected for sea-worthly delivery or as requested.
Marking
Our products are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases.
Grade | C | N | Fe | Al | O | H | Ti | Fe | V |
Ti-6al-4v Eli | 0.10 max | 0.05 max | 0.40 max | 5.5-6.75 max | 0.20 max | 0.015 max | bal | 0.30 max | 3.5-4.5 |
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Ti-6al-4v Eli Round Bars | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
ASME B16.9 Pipe Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
Mss SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
Oil & Gas
Industry
Power Plant
Generation
Marine
Industry
Petrochemical
Industry
Chemical
Industry
Aerospace
Industry
Sugar
Industry
Contact Renox Impex today for a best offer & competitive quotation Of Titanium Grade 23 Butt weld Pipe Fittings.
Call : +91 80806 99454 / Email : [email protected]
Check Today's price of Titanium TI 6AL 4V ELI Pipe Fittings in India
We also supply Titanium Alloy Gr.23 Butt weld Pipe Fittings at the best price. You can check our latest Ti-6Al-4V ELI Two Halve Butt weld Fittings Size price list. Contact Renox Impex today for a best offer & competitive quotation Of Titanium Gr 23 Buttweld Elbow.
