ASTM B564 C22 Hastelloy Flange
Hastelloy C-22 Pipe Flange
UNS N10276 Flanges
Hastelloy N10276 Flanges
2.4602 Flange
WNR. 2.4602 Flanges

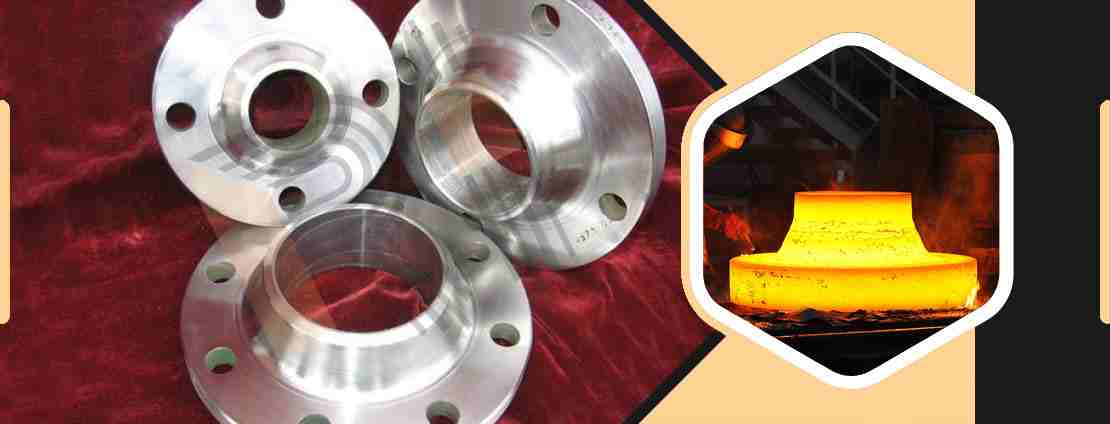

Hastelloy C22 and C276 flanges are made from high-quality nickel-chromium-molybdenum alloy. They provide excellent resistance to various chemicals, including sulfuric acid and hydrochloric acid. These flanges can be used in a wide range of industries, such as petrochemical processing, oil production, wastewater treatment, and chemical processing.
Table of Content
The key features of Hastelloy C22 and C276 Flanges include: superior corrosion resistance; high strength; excellent formability; good weldability; low thermal expansion coefficient; good oxidation resistance at higher temperatures; improved temperature stability; and easy fabrication.
These flanges have exceptional performance in harsh environments, making them ideal for use in extreme conditions. The excellent mechanical and thermal properties of the alloy make it suitable for a variety of applications, including piping, tubing, valves, pumps, vessels, tanks, and heat exchangers.
The superior corrosion resistance of Hastelloy C22 and C276 Flanges makes them ideal for use in processing highly acidic compounds. They are also resistant to chloride-induced stress corrosion cracking and pitting. As such, they are ideal for demanding industrial processes that involve chemical exposure.
At Renox Impex, we provide high-quality flanges at competitive prices. Our Hastelloy C22 and C276 flanges have undergone rigorous testing to ensure their strength and durability under various environmental conditions.
Standard | ASTM B564 / ASME SB564 |
Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
Flange Size Chart | 1/2" (15 NB) to 48" (1200NB), DN10~DN5000 |
Pressure Rating | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
JIS | 16 K, 5K, 10 K, 20 K, 30 K, 40 K, 63 K |
Flange Connection / Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove, Flange Pipe. |
Origin | West Europe / Japan / Indian / USA / Korean |
Types of Flanges | Threaded / Screwed / Forged / Plate |
Coating | Yellow Transparent, Zinc Plated, Anti-rust Paint, Oil Black Paint, Cold and Hot Dip Galvanized |
Test Of Flange | Direct-reading Spectrograph, Ultrasonic flaw detector, Magnetic particle detector, X-ray detector, Hydrostatic testing machine. |
Production technique Used | Heat treated, Forged and Machined |
Equipment | Press machine, Bending machine, Pushing Machine, Sand-blasting machine, electric bevelling machine etc. |
Test Certificates | EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc |
STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
Hastelloy C22 | 2.4602 | N06022 | NW 6022 | - | NiCr21Mo14W | - |
Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
C22 Hastelloy Flange Dimensions
Hastelloy C276 Flange Pressure Rating
Hastelloy C-22 Flange Weight Chart
Price List of Hastelloy C22 Flange | Hastelloy Alloy C276 Flange Price in India (INR) | C-22 Hastelloy Flange Price in USD | Alloy C-276 Flange Price in UAE (Dirham) |
2 inch Hastelloy® Alloy C22 Flange Price | ₹ 560 | $ 12.36 USD | 36.03 AED |
C276 Hastelloy Slip on Flange Price | ₹ 1571 | $ 25.58 USD | 68.25 AED |
Hastelloy C-22 Blind Flange Price | ₹ 2580 | $ 28.23 USD | 140.98 AED |
Hastelloy C-276 Lapped Flange Price | ₹ 1650 | $ 18.67 USD | 70.89 AED |
ANSI B16.5 Hastelloy C22 Threaded Flanges Price | ₹ 1750 | $ 26.79 USD | 80.68 AED |
C276 Hastelloy 150 LBS Socket weld Flanges Price | ₹ 750 | $ 24.94 USD | 48.85 AED |
Price of C22 Hastelloy Raised Face Blind Flange | ₹ 1730 | $ 15.65 USD | 68.46 AED |
Price of C276 Hastelloy BLRTJ Flange | ₹ 1210 | $ 16.53 USD | 38.67 AED |
Hastelloy C22 Flange Price List | ₹ 2500 | $ 32.69 USD | 140.34 AED |
Check C22 Hastelloy Flange Sizes, Pressure Rating, Weight and C-276 Hastelloy RTJ Flange Price per KG in Mumbai.
Inspection
Chemical Composition Inspection, Mechanical Properties Test(tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test, No-destructive Test, Hydrostatic Test.
Value Added Services
Packing
Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.
Marking
Our products are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases.
Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
ASTM/ANSI B 16.36 | Welding Neck, Slip on, Threaded Flange |
PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
ASTM/ANSI B 16.5 | Welding Neck, Slip on, Blind, High Hub Blind, Socket Weld, Lap Joint, Threaded, Ring Type Joint Flange |
PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
ASTM/ANSI B 16.47 | Welding Neck, Blind Flange [Series A & B] |
PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
BS 4504 SEC 3.1 | Welding Neck, Hubbed Slip on, Hubbed Threaded, Lapped Pipe End, Plate, Loose Plate, Loose Plate With Weld Neck, Blank Flange |
PRESSURE CLASS | PN 2.5 TO PN 40 |
BS 4504[PART 1] | Welding Neck, Hubbed Slip-On Hubbed Threaded, Plate, Loose Plate With Weld On Plate Collar, Blank Flange |
PRESSURE CLASS | PN 2.5 TO PN 400 |
BS 1560 BOSS | Welding Neck, Socket Welding, Slip-On, Blind, Screwed Boss, Lapped Flange |
PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
BS10 | Welding Neck, Plate Slip-On, Screwed Boss, Slip-On Boss, Blind Flange |
TABLE | D, E, F, H |
DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
PRESSURE CLASS | PN 6 TO PN 100 |
Oil & Gas
Industry
Power Plant
Generation
Marine
Industry
Petrochemical
Industry
Chemical
Industry
Aerospace
Industry
Sugar
Industry
Contact Renox Impex today for a best offer & competitive quotation Of Hastelloy C276 Flanges.
Call : +91 80806 99454 / Email : [email protected]
Check Today's price of Hastelloy C22 Pipe Flanges in India
We also supply Hastelloy Alloy C22 Flanges at the best price. You can check our latest Hastelloy C276 JIS B2220 5K Flange price list. Contact Renox Impex today for a best offer & competitive quotation Of Hastelloy C-22 PN 10 Flange.
