Alloy 263 Round Bar
Nimonic 263 Round Bar
UNS N07263 Round Bar
Alloy N07263 Round Bars
2.4650 Square Bar
WNR. 2.4650 Square Bars

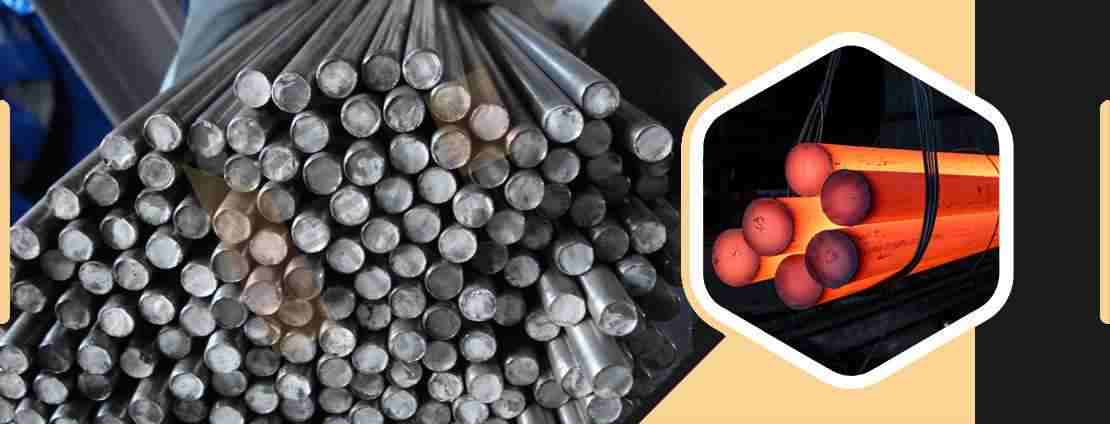

Nimonic 263 is a nickel-based superalloy with excellent creep and high-temperature corrosion resistance. It has good strength at both extreme temperatures, making it ideal for use in gas turbine engines and other high-temperature applications. Nimonic 263 Bars are available in various sizes and shapes to suit different application needs. These bars feature superior corrosion resistance in all types of environments, as well as outstanding oxidation resistance up to 1100°C. Additionally, Nimonic 263 Bars boast excellent tensile strength even at elevated temperatures, making them suitable for use in areas that experience very high thermal loads during operation.
Table of Content
Because of its superior properties, Nimonic 263 Bars can be used for a wide range of applications such as turbine blades, exhaust nozzles, and heat shields in gas turbine engines. Additionally, Nimonic 263 Bars are also used for components that require high-temperature strength such as furnace components, combustion chambers, and nozzle guides.
Nimonic 263 Bars offer a combination of excellent creep resistance and oxidation resistance at elevated temperatures that make it the preferred material for use in applications such as turbine blades and exhaust nozzles where performance is critical. These bars also provide good weldability compared to other nickel alloys making them easy to fabricate into complex shapes or sizes needed for specific applications.
With its unique combination of features, Nimonic 263 Bars are the perfect choice for many high-temperature application needs. Its superior corrosion resistance, oxidation resistance, and weldability make it an excellent choice for any application where performance is key.
Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
Hex Bar Size | 2-100mm A/F |
Round Bar Size | Diameter: 3-~800mm |
Flat Bar Size | Thickness: 2 -100mm |
Width: 10 to 500mm | |
Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
Square Bar Size | 4 to 100mm |
Channel Bar | 80 x 40mm to 150 x 90mm section; 5.0 to 6.0mm thickness |
Rectangular Bars Section | 3.0 to 12.0mm thickness |
Threaded Bar Billet Size | 1/2 to 495mm Diameter |
Rectangles Size | 33 x 30mm to 295 x 1066mm |
Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
Condition | Hardened & tempered, annealed |
Technique | Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
Processing | Bar cutting to 650mm |
Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
STANDARD | WERKSTOFF NR. | UNS |
Alloy 263 | 2.4650 | N07263 |
Nimonic 263 Round Bar Size Chart
Nimonic 263 Round Bar Tolerances
Alloy 263 Round Bar Weight Chart
Price List of Nimonic 263 Round Bar | Alloy 263 Round Bar Price in India (INR) | Nimonic® 263 Round Bar Price in USD | Nimonic 263 Round Bar Price in UAE (Dirham) |
Nimonic® Alloy 263 Hex Bar Price | ₹ 1799 | $ 36.07 USD | 112.48 AED |
Nimonic 263 Bar Price Per Kg In India | ₹ 1460 | $ 35.10 USD | 143.73 AED |
Nimonic Alloy 263 Flat Bar Price List | ₹ 1400 | $ 16.21 USD | 91.27 AED |
Price of Nickel Alloy 263 Round Bar Prices | ₹ 1167 | $ 53.67 USD | 104.31 AED |
Nimonic Alloy 263 Square Bar Price | ₹ 1568 | $ 43.52 USD | 113.50 AED |
263 Nimonic Alloy Round Bar Price | ₹ 1560 | $ 42.70 USD | 152.73 AED |
Alloy 263 Round Bar Price Per Kg | ₹ 3310 | $ 58.44 USD | 154.64 AED |
Nimonic 263 Bar Price Per Kg | ₹ 1860 | $ 36.17 USD | 119.57 AED |
Alloy 263 Round Bar Price | ₹ 1650 | $ 28.17 USD | 140.30 AED |
Check Nimonic® Alloy 263 Round Bar Size Chart, Pressure Rating, Weight and Nimonic Alloy 263 Bar Price Per Kg in Mumbai.
Inspection
Surface and Dimension Test, Chemical Composition Inspection, Mechanical Properties Test(tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), No-destructive Test, Hydrostatic Test.
Tests
Packing
Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.
Marking
Our products are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases.
Grade | Ni | Cr | Mn | Si | C | Al | Ag | B | Fe |
Alloy 263 | Bal | 19-21 | 0.60 max | 0.40 max | 0.04-0.08 | 0.60 max | 0.0005 max | 0.005 max | 0.07 max |
Cu | Mo | Co | Ti | Al+Ti | Pb | Bi | S | - | |
0.20 max | 5.6-6.1 | 19-21 | 1.90-2.40 | 2.40-2.8 | 0.0020 max | 0.0001 max | 0.007 max |
Material | Temp °C | Yield Strength 0.2% (Mpa) | Tensile Strength (Mpa) | Elongation % | Hardness HB |
Nimonic 263 Bar Solution Treated (AMS 5886/ BS HR10) |
RT | - | - | - | 248 max |
Nimonic 263 Bar Heat Treated (AMS 5886 / BS HR10) |
RT | 585 (typical) | 1004 (typical) | 45 | - |
Nimonic 263 Bar Heat Treated (AMS 5886/ BS HR10) |
780 | 403 (min) | 541 (min) | 12 | - |
CD | Cold drawn | P | Polished |
CG | Centreless ground | HF | Hot finished |
BD | Bright drawn | SRE | Slit rolled edge |
P&T | Peeled and turned | RT | Rough turned/peeled |
CF | Cold finished | HRAP | Hot rolled annealed and pickled |
ST | Smooth turned | PR | Peeled and reeled |
Oil & Gas
Industry
Power Plant
Generation
Marine
Industry
Petrochemical
Industry
Chemical
Industry
Aerospace
Industry
Sugar
Industry
Contact Renox Impex today for a best offer & competitive quotation Of Nimonic 263 Round Bar.
Call : +91 80806 99454 / Email : [email protected]
Check Today's price of Nimonic 263 Round Bar in India
We also supply Alloy 263 Round Bar at the best price. You can check our latest 263 Nimonic Square Bar price list. Contact Renox Impex today for a best offer & competitive quotation Of Nimonic 263 Round Rod.
