825 Incoloy Forged Fittings, Incoloy Alloy 825 Forged Fittings Suppliers in Mumbai

[email protected]

+91 80806 99454

ASTM B564 Incoloy 825 Forged Elbow

825 Incoloy Socket weld Elbow
UNS N08825 Forged Fittings

Incoloy N08825 Threaded Fittings
2.4858 Socketweld Fittings

WNR. 2.4858 Forged Pipe Fittings

Inconel 825 Forged Fittings, Incoloy 825 Socket weld Fittings, 825 Incoloy Threaded Fittings, Incoloy 825 Forged Fittings Supplier in Mumbai.

Incoloy 825 Forged Fittings are a kind of nickel-iron-chromium alloy with molybdenum, copper, and titanium as additional elements. It has excellent resistance to many corrosive media such as oxidizing salt, nitric acid, sulfuric acid, hydrochloric acid, and alkalis. It also has good mechanical properties even in extreme temperature environments.

Table of Content

Its applications include petrochemical plants, seawater desalination projects, and chemical processing equipment due to its high corrosion resistance. It is also used for flanges, valves, and pipe fittings in the oil & gas sector. Furthermore, Incoloy 825 Forged Fittings is often utilized for heat exchangers in nuclear power plants due to its high strength and excellent weldability properties.

The advantages of Incoloy 825 Forged Fittings include high resistance to corrosion, great mechanical strength even in extreme temperatures, good weldability, and easy forming. They are also resistant to stress corrosion cracking and crevice corrosion. Furthermore, the fittings provide improved thermal stability and uniform grain structure due to their precise machining.

Incoloy 825 High Pressure Forged Fittings, Incoloy 825 Forged Fitting, Incoloy 825 Fittings, 825 Incoloy Forged Elbow, Inconel 825 Threaded Forged Fittings, UNS N08825 Forged Pipe Fittings, 2.4858 Socketweld Fittings, Incoloy Alloy 825 Screwed Fittings, 825 Incoloy Forged Fittings Manufacturers in India.

In conclusion, Incoloy 825 Forged Fittings offer a variety of benefits such as excellent corrosion resistance, superb mechanical properties even at extreme temperatures, and good weldability. The fittings are ideal for applications that require durability in corrosive environments such as petrochemical plants or seawater desalination projects.

Get 2 inch Incoloy 825 Forged Fittings Suppliers in Mumbai at Factory Price, Wide range of Inconel 825 Coupling as per ASME B16.11 standard, Incoloy Alloy 825 Socket weld Pipe Fittings Stock, Bulk Stockholders Of Incoloy 825 Threaded Elbow In India.

Incoloy 825 Forged Fittings Specification

Specifications	ASTM B564 & ASME SB564
Standard	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class	2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type	Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process	Forge, Cast, Push, Press, etc.
Key markets and industries	Bitumen upgraders. Heavy oil refineries. Petrochemicals and acids. Nuclear power.
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Specialized manufacturer of	90 Deg Forged Elbows, 45 Deg Forged Elbows, Tees, Crosses, Couplings, End Cap, Union, Bushing, Plug, Barrel Nipple

Incoloy 825 Socket weld Forged Fittings Equivalent Material

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Incoloy 825	N08825	2.4858	NC22DNB4M	NiCr22Mo9Nb	NCF 825	NA 21	ЭП703	ЭИ602

Common Types of Incoloy 825 Forged Fittings

825 Incoloy 90 Degree Forged Elbow

Incoloy 825 45° Forged Elbow

Incoloy 825 Street elbow

Incoloy 825 Forged Tee

Incoloy 825 Forged Cross

825 Incoloy End Cap

Alloy 825 Half Coupling

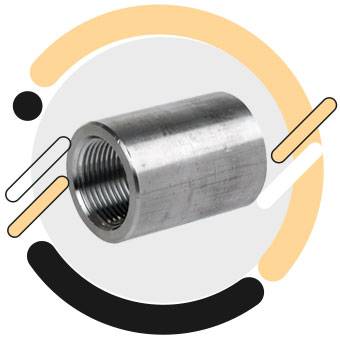

825 Incoloy Alloy Full Coupling

Incoloy 825 Forged Union

Incoloy 825 Plug

Incoloy 825 Bushings

825 Incoloy Barrel Nipples

We Provide The Best Quality UNS N08825 Forged Fittings. We can supply 825 Incoloy Alloy Forged Socket weld Fittings and DIN 2.4858 Screwed Elbow, 825 Incoloy Street Elbow check latest price per kg in India.

825 Incoloy Socket weld Pipe Fittings Technical Data Sheet

Dimensions

825 Incoloy Forged Fittings Dimensions

Pressure Rating

Inconel 825 Forged Fitting Pressure Rating

Weight Chart

Incoloy Alloy 825 Forged Fittings Weight Chart

825 Incoloy Forged Fittings Dimensions

Request a Quote

Check Today's price of Incoloy 825 Forged Fittings in India

We also supply Incoloy Alloy 825 Socket Weld Pipe Fittings at the best price. You can check our latest Inconel 825 Forged Pipe Fittings Size price list. Contact Renox Impex today for a best offer & competitive quotation Of Incoloy 825 Forged Elbow.

Phone: +91 80806 99454

Email: [email protected]

825 Incoloy Forged Fittings Price List

Price List of Incoloy 825 Forged Fittings	Incoloy Alloy 825 Forged Fittings Price in India (INR)	Alloy 825 Forged Pipe Fittings Price in USD	Inconel 825 Forged Fittings Price in UAE (Dirham)
825 Incoloy Forged Elbow Price List	₹ 580	$ 8.69 USD	27.58 AED
Incoloy® Alloy 825 Forged Fittings Cost	₹ 1300	$ 15.82 USD	45.11 AED
Incoloy 825 Socketweld Pipe Elbow Price	₹ 2500	$ 75.17 USD	170.30 AED
Incoloy® 825 Forged Fittings Prices	₹ 1507	$ 24.78 USD	72.30 AED
Inconel 825 Street Elbow Price	₹ 426	$ 7.85 USD	23.50 AED
Incoloy 825 Forged Equal Tee Price	₹ 1580	$ 12.06 USD	38.96 AED
Price of Pressure Class 2000LBS Incoloy 825 Forged Fittings	₹ 420	$ 18.33 USD	45.61 AED
Price of Inconel 825 Couplings	₹ 1397	$ 20.00 USD	72.44 AED
Incoloy Alloy 825 Threaded Fittings Price List	₹ 2500	$ 35.21 USD	160.27 AED

Quick Contact

[email protected]

Check 825 Incoloy Forged Pipe Fittings Sizes, Pressure Rating, Weight and Inconel 825 Socketweld Fittings Price per KG in Mumbai.

Get Call Back

Testing
Packaging

Inspection

Chemical Composition Inspection, Mechanical Properties Test(tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test, No-destructive Test, Hydrostatic Test.

Value Added Services

Hot Dipped Galvanizing
Sand Blasting
Electro Polish
Epoxy Coating
Threading, Soldering

Packing

Bare packing/bundle packing/crate packing/wooden protection at the both sides of Pipe Fittings and suitably protected for sea-worthly delivery or as requested.

Marking

Our products are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases.

Incoloy Alloy 825 Forged Fittings Chemical Composition

Grade	C	Mn	Si	S	Al	Ti	Fe	Ni	Cr
Incoloy 825	0.10 max	0.50 max	0.50 max	0.015 max	0.40 max	0.40 max	5.0 max	58.0 min	20.0 - 23.0

825 Incoloy Forged Pipe Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.4 g/cm3	1350 °C (2460 °F)	Psi - 1,35,000 , MPa -930	Psi - 75,000 , MPa - 517	42.5 %

Other Types of Incoloy 825 Forged Fittings

Incoloy Forged Threaded Fittings

Nickel Alloy 825 Forged Elbow
Incoloy® Alloy 825 Hex Union
825 Incoloy Forged Reducing Tee
UNS N08825 Forged Pipe Fittings
ANSI B16.11 Alloy 825 Forged Socketweld Fittings
ASME SB564 825 Incoloy Street Elbow
Incoloy Alloy 825 Forged Fittings Supplier in Mumbai
825 Incoloy Couplings
Inconel 825 Forged Threaded Cap
Alloy 825 Reducing Elbows
Incoloy® 825 Forged Unequal Tee Exporter
Incoloy 825 Forged Fittings Manufacturer in Mumbai
Alloy 825 Forged Fittings Manufacturer in India
Incoloy 825 Half Coupling
Nickel Alloy 2.4858 Socket weld Fittings
ASTM B564 825 Incoloy Equal Tee
825 Incoloy Union
Alloy 825 Forged Fittings Dealers
Incoloy Alloy 825 Equal Cross
Inconel 825 Unequal Cross
825 Incoloy 45 Degree Screwed Elbow
Incoloy® Alloy 825 90° Forged Elbow
825 Incoloy Forged Fittings Suppliers
Inconel 825 Forged End Cap

Incoloy Forged Socket weld Fittings

Incoloy 825 Hex Head Plug
Alloy 825 Forged Fittings Supplier in Mumbai
825 Incoloy Alloy Forged Fittings Price List
825 Incoloy Forged Fittings Near Me
Inconel 825 SW Fittings
Incoloy 825 Forged Elbow Stockist
Inconel 825 Forged Fittings Suppliers in India
Incoloy 825 Socket weld Forged Fittings
Incoloy Alloy 825 Socketweld Fittings
Inconel 825 NPT Threaded Fittings
Incoloy 825 BSP Threaded Fittings
Incoloy 825 Forged Fittings Manufacturer in Mumbai
MSS-SP-75 Incoloy 825 Socketweld Pipe Fittings
825 Incoloy Alloy Square Head Plugs
Inconel 825 Reducing Cross
825 Incoloy Alloy Threaded Fittings
Incoloy 825 Hex Head Bushing
Incoloy 825 Forged Fittings Manufacturers in India
Incoloy® Alloy 825 Full Coupling
Alloy 825 Industrial Forged Pipe Fittings
Alloy 825 Round Head Plug Distributors
ASME B16.11 825 Incoloy High Pressure Forged Fittings
Alloy 825 Forged Coupling
825 Incoloy Alloy Threaded Plug

825 Incoloy Forged Fittings Manufacturing Process

825 Incoloy Forged Fittings Manufacturing Standards

Standard	Types	Class Rating/Schedule	Ends	Size
ASME B16.11	90°Elbow/ 45°Elbow/ Tee/ Cross	2000LB	Threaded	1/4''~4''
	90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coupling	3000LB/6000LB	Threaded	1/4''~4''
		3000LB/6000LB	Socket-welding	1/8''~4''
	90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coupling	9000LB	Socket-welding	1/2''~2''
	Street Elbow	3000LB	Threaded	1/8''~2''
	Street Elbow	6000LB	Threaded	1/8''~1-1/2''
	Lateral Tee	3000LB	Socket-welding	1/4''~2''
		6000LB	Socket-welding	1/2''~1-1/2''
		3000LB	Threaded	3/8''~2‘’
		6000LB		1/2''~2''
		9000LB		1/2''~1-1/2''
	Flush Bushing/Hex Bushing/Hex Plug/Round Plug/Square Plug	3000LB/6000LB	Threaded	1/8''~4''
MSS SP79	Reducer Inserts	3000LB/6000LB/9000LB	Socket-welding	3/8‘’x1/4''~2x1/2''
MSS SP83	Union	3000LB	Socket-welding/Threaded	1/8''~3''
MSS SP95	Concentric/Eccentric Swaged Nipples		See Below Note1	1/4‘’~12''
MSS SP95	Bull Plugs		Threaded	1/8''~12''
MSS SP97	Weldolet	-	-	-
	Sockolet	3000LB/6000LB	Socket-welding	1/8''~6''
	Threadolet	3000LB/6000LB	Threaded	1/8''~6''
	Nipolet	XS/XXS	Plain/Threaded	1/2''~2''
	Elbolet	3000LB/6000LB	Socket-welding/Threaded	1/4''~2''
	Elbolet	-	-	-
	Latrolet	3000LB/6000LB	Socket-welding/Threaded	1/2''~2''
	Latrolet	-	-	-
	Flangolet, Nipolet, Sweepolet, etc. available as per client' demands.
BS3799	Hex Nipple	3000LB/6000LB	Threaded	1/8''~2''x1/2''
	Bosses	3000LB	Threaded	1/8''~2''
	Bosses	6000LB	Threaded	1/8''~4''
